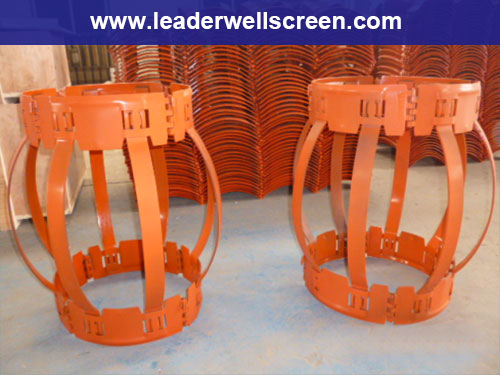

Lida Variety Of Models Centralizer
- Promulgator：LIDA FILTER DATE:
Installation Method of Use
The put spacing of the casing centralizer should meet the design requirements of the construction and the diameter of the centralizer should be determined according to borehole.
Tnstallation method:
1.It can be set directly on the casing.
2.It can be installed between casing coupling and coupling for freedom movement.
3.It can be installed on any position of the casing using fixed rings.
Centralizer should be deducted on casing when installed.After co-hoop wear in the two pins top and bottom.Flatten or bend the latch pin chip to prevent the pin out thrn into the correct wells.
Through the carefully check and then be laid into the well.
Our sizes are available as follows:
|
specification
mm (in) |
Well diameter
mm (in) |
Wide of spring
(mm) |
Thickness of spring
|
Amount of spring
|
|
114(4 1/2)
|
152,159,200
(6, 6 1/4, 7 7/8) |
30
|
4
|
5
|
|
127 (5)
|
171,200
(6 3/4,7 7/8) |
30
|
4
|
5
|
|
140(5 1/2)
|
200,222,251
(7 7/8,8 3/4,9 7/8) |
30
|
4
|
6
|
|
168 (6 5/8)
|
222 (8 3/4)
|
30
|
4
|
6
|
|
178 (7)
|
222,251
(8 3/4,9 7/8) |
35
|
4
|
6
|
|
194 (7 5/8)
|
244,251
(9 5/8,9 7/8) |
40
|
4
|
6
|
|
219 (8 5/8)
|
311 (12 1/4)
|
40
|
4
|
8
|
|
244 (9 5/8)
|
311 (12 1/4)
|
40
|
4
|
8
|
|
273 (10 3/4)
|
375 (14 3/4)
|
45
|
4
|
10
|
|
298 (11 3/4)
|
394 (15 1/2)
|
45
|
4
|
10
|
|
340 (13 3/4)
|
444 (17 1/2)
|
50
|
4
|
10
|
