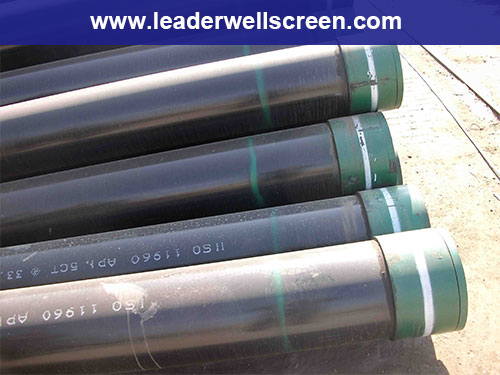

API seamless casing pipe length:r1 r2 r3

Tubing	Size  in	OD in(mm)			Wall in(mm)		Grade	Length ft(mm)
		Stand ard		EUE
	23/8	2.375 (60.33)		2.594 (65.90)	0.190(4.83)		J55 N80 L80 C90 T95 P110	28∼32(8530∼9750)
	27/8	2.875 (73.03)		3.094 (78.60)	0.217(5.51)
	31/2	3.500 (88.90)		3.750 (95.20)	0.254(6.45)
Coupling	Size in	OD  in(mm)			Min Length in(mm)		Grade	End Width in(mm)		Weight  lbs(kg)
		Standard	EUE		Standard	EUE		Standard	EUE	Standard	EUE
	23/8	2.875(73.03)	3.063 (77.80)		41/4 (107.95)	47/8 (123.83)	J55 N80 L80 C90 T95 P110	3/16 (4.76)	3/16 (4.76)	2.82 (1.28)	3.43 (1.55)
	27/8	3.500(88.90)	3.668 (93.20)		51/8 (130.18)	51/4 (133.35)			7/32 (5.56)	5.15 (2.34)	5.29 (2.40)

Casing is the major structural component of a well. Casing pipe lines the borehole. It is subject to axial tension by its dead weigh, internal pressure by fluid purging, and external pressure by surrounding rock formations. Casing is particularly exposed to axial tension and internal pressure by the pumped oil or gas emulsion. Casing is needed to: Maintain borehole stability
