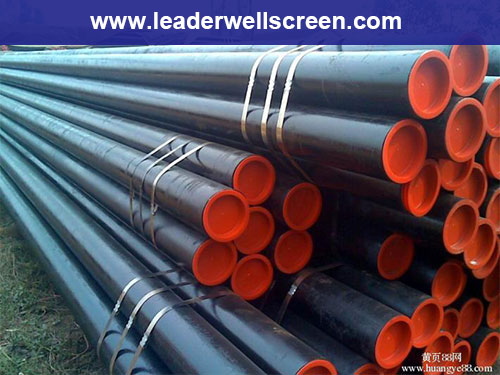

5 1/2＂ 17lbs J55 BTC Range 2 API 5CT pipe for oil wells
- Promulgator：LIDA FILTER DATE:
| Casing Technical Specification (Standard API Spec 5 CT) | |||||||
| Size | Outside Diameter | Inside Diameter | Grade | Wall Thickness | |||
| in | mm | in | mm | in | mm | ||
| 4-1/2 | 4.500 | 114.30 | 4.000 | 101.60 | J55K55N80 | 0.250 | 6.35 |
| 3.920 | 99.57 | J55K55N80 | 0.290 | 7.37 | |||
| 5 | 5.000 | 127.00 | 4.408 | 111.96 | J55K55N80 | 0.296 | 7.52 |
| 4.276 | 108.61 | N80P110 | 0.362 | 9.29 | |||
| 4.126 | 104.80 | N80P110 | 0.437 | 11.10 | |||
| 5-1/2 | 5.500 | 139.70 | 4.892 | 124.26 | J55K55N80 | 0.304 | 7.72 |
| 4.778 | 121.36 | N80 | 0.361 | 9.17 | |||
| 4.670 | 118.62 | N80 | 0.415 | 10.54 | |||
| 7 | 7.000 | 177.80 | 6.366 | 161.70 | J55K55N80 | 0.317 | 8.05 |
| 6.276 | 159.41 | J55K55N80 | 0.362 | 9.19 | |||
| 6.184 | 157.07 | N80 | 0.408 | 10.36 | |||
| 9-5/8 | 9.625 | 244.48 | 8.755 | 222.38 | N80 | 0.435 | 11.05 |
| 8.681 | 222.50 | N80 | 0.472 | 11.99 | |||
| 10-3/4 | 10.750 | 273.05 | 10.050 | 255.27 | H40J55K55N80 | 0.350 | 8.89 |
| 9.850 | 250.19 | J55K55N80 | 0.450 | 11.43 | |||
| 13-3/8 | 13.375 | 339.72 | 12.615 | 320.42 | J55K55 | 0.380 | 9.65 |
| 12.415 | 315.34 | J55K55N80 | 0.480 | 12 | |||
| Size | Outside diameter | Wall thickness |
Weight lb/ft |
|||
| ln. | mm | ln. | mm | Non upset | Ex-Upset | |
| 2 3/8” | 2.375 | 60.33 | 0.167 | 4.24 | 4.00 | -- |
| 2.375 | 60.33 | 0.190 | 4.83 | 4.60 | 4.70 | |
| 2.375 | 60.33 | 0.254 | 6.45 | 5.80 | 5.95 | |
| 2 7/8” | 2.875 | 73.03 | 0.217 | 5.51 | 6.40 | 6.50 |
| 2.875 | 73.03 | 0.276 | 7.01 | 7.80 | 7.90 | |
| 3 1/2” | 3.500 | 88.90 | 0.216 | 5.49 | 7.70 | -- |
| 3.500 | 88.90 | 0.254 | 6.45 | 9.20 | 9.30 | |
| 3.500 | 88.90 | 0.289 | 7.34 | 10.20 | -- | |
| 4” | 4.000 | 101.60 | 0.226 | 5.74 | 9.50 | -- |
| 4.000 | 101.60 | 0.262 | 6.65 | -- | 11.00 | |
| 4.000 | 101.60 | 0.33. | 8.38 | 13.20 | -- | |
| 4 1/2” | 4.500 | 114.30 | 0.271 | 6.88 | 12.60 | 12.75 |
| 4.500 | 114.30 | 0.337 | 8.56 | 15.20 | -- | |
If you are interested in our product, please contact us, and for more information.
