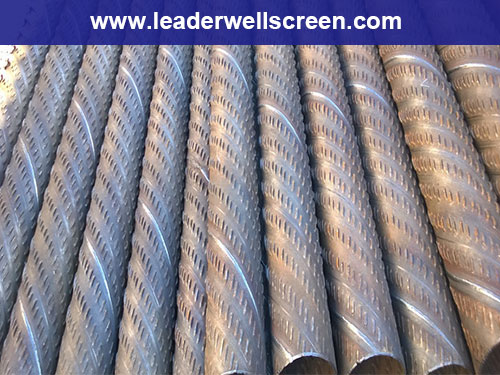

bridge slotted screen pipe for drilling driking water well
- Promulgator：LIDA FILTER DATE:
The Spiral style Bridge slot screen is a kind of spiral screen pipe which has the bridge shape slot,it’s welded by the double-side automatic submerged arc welding technology.
Compared with the traditional Bridge slot screen,it’s welding line is more full and even,more reasonable in design and with a unique structure,more sophisticated and with a reliable quality.
The compression resistance of the screen is much higher than the traditional one’s.The screen is the ideal substitute product of modern drilling industry which is also applied in hydrogeologic prospecting,well drilling,shaft sinking,reservoir precipitation , foundation dig precipitation ,ming & mineral processing ,geothermal exploitation ,mineral water supply, metallurgical geology,refining & petrochemical ,geothermal air-conditioner ,broken well remediation, underground water lifting,agricultural transformation,city water supply,etc.
Technical data
|
Mechnical Property |
|||||||||||||||||||
|
(mm) |
159 |
219 |
273 |
325 |
377 |
426 |
529 |
||||||||||||
|
Wall thickness(P) |
5 |
6 |
5 |
6 |
5 |
6 |
8 |
5 |
6 |
8 |
5 |
6 |
8 |
5 |
6 |
8 |
6 |
7 |
8 |
|
Tension strength(K N) |
230 |
270 |
320 |
390 |
400 |
490 |
653 |
480 |
570 |
760 |
560 |
670 |
893 |
630 |
760 |
1048 |
782 |
944 |
1296 |
|
Anti Extrusion(N/cm) |
520 |
690 |
340 |
450 |
170 |
230 |
306 |
136 |
203 |
270 |
128 |
183 |
244 |
92 |
135 |
203 |
90 |
136 |
186 |
|
Selection of slot size |
|||||
|
Aquifer classification |
gravel |
Rough sand |
Medium sand |
Fine sand |
Mealy sand |
|
Screening results (mm) |
1-2.5 |
0.5-1 |
0.25-0.5 |
0.1-0.25 |
0.1-0.25 |
|
Bridge slots (mm) |
3 |
1.5-2 |
1 |
1 |
0.75 |
|
Filling gravel spec (mm) |
4-20 |
2-8 |
2-3 |
2-3 |
2-3 |
|
Filling gravel thickness (mm) |
75-100 |
100 |
100-200 |
100-200 |
100-200 |
